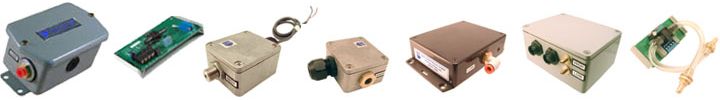

Pressure and Vacuum Transmitters

Our pressure and vacuum transmitters come in a wide range of outputs, ranges and enclosures. We can customize nearly any aspect of the transmitter free of charge. We cater to OEMs, resellers and quantity buyers, so we are very competitive with price, our service is the best in the industry and our delivery is quick.

We make and design our transmitters here, so we can respond quickly and we can keep prices low by cutting out layers of suppliers. If you have application questions or problems, we can help. Whether you need to know how to wire to a VFD, detect tank level, connect to an analog input card or just get the polarity right on a 4-20 ma, 2 wire loop, we can help. Just give us a call or email us at sales@beccontrols.com

If you already have the transmitter part number, select "replacement transmitter" below.


CUSTOMIZED DIFFERENTIAL PRESSURE TRANSMITTER
$250.00
DIFFERENTIAL PRESSURE TRANSMITTER
  • Pressure range from 0-0.5" W.C. TO 0-60 PSI
  • 4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
          Custom output
  • 24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power
  • NEMA 4 Enclosure or board only for panel mount
  • Option for Dry or Wet media
  • Inverted output or LCD readout for special options
          if needed
  • Brass and fluorosilicone wetted parts
  • P47 Series

    Part number: DP8-47Hxx-(pressure range)-xx

  • CUSTOMIZED SS DIFFERENTIAL PRESSURE TRANSMITTER
    $563.00
    STAINLESS STEEL DIFFERENTIAL PRESSURE TRANSMITTER
  • Pressure range from 0-5 PSI TO 0-1500 PSI
  • Stainless Steel Sensors
  • 4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
          Custom output
  • 24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power
  • NEMA 4 Enclosure or board only for panel mount
  • Inverted output or LCD readout for special options
          if needed
  • P48 Series

    Part number: DP8-48xxx-(pressure range)-xx

  • 4-20 MA DIFFERENTIAL PRESSURE TRANSMITTER
    $325.00
    DIFFERENTIAL PRESSURE TRANSMITTER
  • Pressure range from 0-3" W.C. TO 0-60 PSI
  • 4-20 mA, 2 Wire Output
  • 24 VDC Power
  • NEMA 4 Enclosure
  • Can be used with dry or liquid media
  • Brass and fluorosilicone wetted parts

    Part number: DP8-47HWB-(pressure range)-A2

  • 0-5 VDC DIFFERENTIAL PRESSURE TRANSMITTER
    $310.00
    DIFFERENTIAL PRESSURE TRANSMITTER
  • Pressure range from 0-3" W.C. TO 0-60 PSI
  • 0-5 Vdc Output
  • 24 Vac/dc Power
  • NEMA 4 Enclosure
  • Can be used with dry or liquid media
  • Brass and fluorosilicone wetted parts

    Part number: DP8-47HWG-(pressure range)-A2

  • STAINLESS 4-20 MA DIFFERENTIAL PRESSURE TRANSMITTER
    $563.00
    STAINLESS STEEL DIFFERENTIAL PRESSURE TRANSMITTER
  • Pressure range from 0-5 PSI TO 0-500 PSI
  • Stainless Steel Sensors
  • 4-20 mA, 2 wire output
  • 24 VDC Power
  • Can be used with dry, liquid or corrosive media
  • NEMA 4 Enclosure

    Part number: DP8-48DWB-(pressure range)-A2

  • CUSTOMIZED GAUGE PRESSURE TRANSMITTER
    $225.00
    GAUGE PRESSURE TRANSMITTER
  • Pressure range from 0-0.5" W.C. TO 0-250 PSI
  • 4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
          Custom output
  • 24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power
  • NEMA 4 Enclosure or board only for panel mount
  • Option for Dry or Wet media
  • Inverted output or LCD readout for special options
          if needed
  • Brass and fluorosilicone wetted parts
  • P44 Series

    Part number: GP8-44xxx-(pressure range)-xx

  • CUSTOMIZED SS GAUGE OR VACUUM PRESSURE TRANSMITTER
    $315.00
    STAINLESS STEEL GAUGE PRESSURE AND VACUUM TRANSMITTER
  • Pressure range from 0-5 PSI TO 0-1500 PSI
  • Vacuum as low as -30" hg or -14.7 psi
  • Stainless Steel Sensors
  • 4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
          Custom output
  • 24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power
  • NEMA 4 Enclosure or board only for panel mount
  • Inverted output or LCD readout for special options
          if needed
  • P46 Series

    Part number: GP8-46xxx-(pressure range)-xx

  • 4-20 MA GAUGE PRESSURE TRANSMITTER
    $285.00
    GAUGE PRESSURE TRANSMITTER
  • Pressure range from 0-0.5" W.C. TO 0-60 PSI
  • 4-20 mA, 2 Wire
  • 24 VDC Loop Powered
  • NEMA 4 Enclosure
  • Dry or Wet media compatible
  • Brass and fluorosilicone wetted parts
  • P44 Series

    Part number: GP8-44HWB-(pressure range)-A2

  • 4-20 MA SS GAUGE OR VACUUM PRESSURE TRANSMITTER
    $345.00
    STAINLESS STEEL GAUGE PRESSURE AND VACUUM TRANSMITTER
  • Pressure range from 0-5 PSI TO 0-1500 PSI
  • Vacuum as low as -30" hg or -14.7 psi
  • Stainless Steel Sensors
  • 4-20 mA output
  • 24 VDC loop powered
  • NEMA 4 Enclosure
  • P46 Series

    Part number: GP8-46DWB-(pressure range)-A2

  • CUSTOMIZED VACUUM TRANSMITTER
    $225.00
    VACUUM TRANSMITTER
  • Vacuum range from 0-0.5" W.C. TO 0-250 PSI
  • 4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
          Custom output
  • 24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power
  • NEMA 4 Enclosure or board only for panel mount
  • Option for Dry or Wet media
  • Inverted output or LCD readout for special options
          if needed
  • Brass and fluorosilicone wetted parts
  • P44 Series

    Part number: GP8-44xxx-(pressure range)-xx

  • 4-20 MA VACUUM TRANSMITTER
    $285.00
    VACUUM TRANSMITTER
  • Vacuum range from 0-0.5" W.C. TO 0-60 PSI
  • 4-20 mA, 2 Wire
  • 24 VDC Power
  • NEMA 4 Enclosure
  • Dry or Wet media compatible
  • Brass and fluorosilicone wetted parts

    Part number: GP8-44HWB-(pressure range)-A2

  • Order a Replacement Transmitter - You already have the part number
    $225.00
    Use the selection boxes to enter the part number from the label on your transmitter.

    Example: DP8-47HWB(0-10")A2

    DIFFERENTIAL OR GAUGE PRESSURE SENSING: DP8-
    SPECIAL OPTION 1: NONE
    SPECIAL OPTION 2: NONE
    SERIES: 47
    FACTORY CODE: H
    ENCLOSURE: W
    OUTPUT: B
    PRESSURE RANGES: 0-10"
    POWER SUPPLY: A
    MEDIA: 2
