Differential Pressure, Gauge Pressure and Vacuum Transmitters

P-44 SERIES GAUGE PRESSURE

View larger image

P-44 SERIES GAUGE PRESSURE

GAUGE PRESSURE TRANSMITTER

Pressure range from 0-0.5" W.C. TO 0-250 PSI

4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
Custom output

24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power

NEMA 4 Enclosure or board only for panel mount

Option for Dry or Wet media

Inverted output or LCD readout for special options
if needed

Brass and fluorosilicone wetted parts

Part number: GP8-44xxx-(pressure range)-xx

Price: $225.00

Output::

B: 4-20mA (2 Wire)
D: 1-5 Vdc (4 Wire)
F: 4-20mA (4 Wire)
G: 0-5 Vdc (4 Wire)
H: 0-10 Vdc (4 Wire)
Custom - Indicate in box

Please, select one

Custom Output if needed::

Pressure Range::

Select the previous option first

Custom Range or Static Pressure if needed(Max range is 250 PSI, ():

Power:

Select the previous option first

Enclosure ():

Select the previous option first

the box type

Media:

Select the previous option first

Special Requirements ():

Select the previous option first

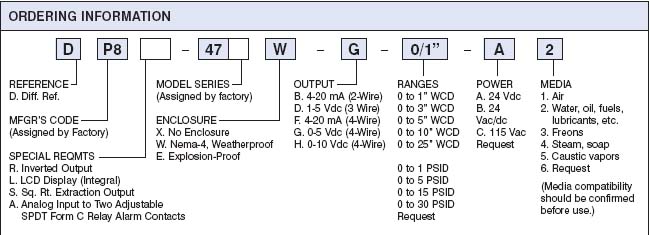

DP8*-47WB-0/30#-A2 *IS WHERE OPTION IS FOUND IN PART NUMBER

Special Requirements 2:

Select the previous option first

Quantity:

Description

OEMs, Resellers and Contractors - Call 800-677-8876 for Pricing or email us at: sales@beccontrols.com

- Wet or Dry Media Compatible
- 0.10" WCD to 250 PSI (27.68 inches of water column = 1 psi)
- Wide range of signal outputs: 4-20 ma 2-wire and 4-wire outputs, nearly any voltage output
- NEMA 4 housing or panel mountable transmitter board
- AC, DC and loop powered
- Temp. Compensated Linear Analog Output
- Reverse Polarity Protected
- Zero and Span Adjustments
- Optional loop powered display

For selection help, click the catalog sheet link below:

Open P44 catalog sheet in a new window
