R74 SWITCH - CREATE SWITCH FOR NEW APPLICATION

DIFFERENTIAL, GAUGE PRESSURE OR VACUUM SWITCH
  • Pressure range from 0.2" W.C. TO 22" W.C.
  • Up to 10 Amp, 480 VAC Ratings
  • Weather tight or panel mount housing options
  • Custom Set Point and Features
  • Optional foot mount, fittings and port orientation
  • UL and CSA approval options
  • Screw Terminals, SO cord or MTW wire with conduit adapter for easy termination
  • -65F to 165F Temperature Range
  • 1/8" NPT female standard ports

    Part number: R74-xxx-xxx

    • Price: $130.00

    • B1: 0.20"-2.25", deadband 0.17"
    • C1: 0.22"-4.00", deadband 0.19"
    • 2: 0.50"-8.00", deadband 0.25"
    • 9: 2.00"-22.00", deadband 0.48"

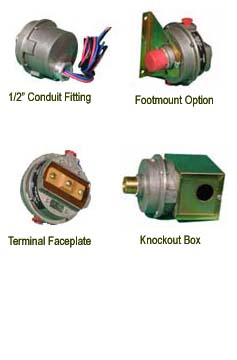

    • G: 6-32 Screws - for mounting in enclosure
    • H: 1/4" Male spades - for mounting in enclosure
    • A: 1/2" Conduit adapter with 3 potted MTW wires (3 ft) SPDT - water tight
    • I: Strain relief with potted 3 wire SO cord (3 ft) SPDT - water tight
    • J: Knockout Box
    • None
    • D1: Bulkhead fitting - 0.218" restrictor opening
    • E1: Nipple mounting restrictor - 3/16" restrictor opening
    • Q1: Hose barb fitting for 3/16" tubing - 5/32" restrictor opening
    • P1: Atmosphere port restrictor - 0.042" restrictor opening
    • None
    • D2: Bulkhead fitting - 0.218" restrictor opening
    • E2: Nipple mounting restrictor - 3/16" restrictor opening
    • Q2: Hose barb fitting for 3/16" tubing - 5/32" restrictor opening
    • P2: Atmosphere port restrictor - 0.042" restrictor opening
    • None
    • C: Foot mount
    • Standard: Hi Port and lo port 180 degrees apart
    • T: Lo port 90 degrees CW from Hi Port when looking at adjusting screw
    • U: Lo port 90 degrees CCW from Hi Port when looking at adjusting screw
    • V: Hi Port and lo port on top of each other - at same location

    Description

    OEMs, Resellers and Contractors - Call 800-677-8876 for Pricing or email us at: sales@beccontrols.com

    - Up to 10 Amp, 480 VAC Ratings
    - Weather tight or panel mount housing options
    - Custom Set Point and Features
    - Optional foot mount, fittings and port orientation
    - UL and CSA approval options
    - Screw Terminals, SO cord or MTW wire with conduit adapter for easy termination
    - 65F to 165F Temperature Range
    - 1/8" NPT female standard ports
    - Custom Ports options

    For selection help, view the catalog sheet below or to view it as a pdf, click the link below:

    Open R70 catalog sheet in a new window
