CUSTOMIZED DIFFERENTIAL PRESSURE TRANSMITTER

DIFFERENTIAL PRESSURE TRANSMITTER

Pressure range from 0-0.5" W.C. TO 0-60 PSI

4-20 mA, 2 Wire or 4 Wire, 0-5 VDC, 0-10 VDC or
Custom output

24 VDC, 24 VDC/VAC, 12 VDC, 120 VAC Power

NEMA 4 Enclosure or board only for panel mount

Option for Dry or Wet media

Inverted output or LCD readout for special options
if needed

Brass and fluorosilicone wetted parts

P47 Series

Part number: DP8-47Hxx-(pressure range)-xx

Price: $250.00

Enclosure ():

Output::

Custom Output if needed::

Pressure Range::

Custom Range or Static Pressure if needed(Max range is 250 PSI, ():

Power:

Media:

Special Requirements ():

Special Requirements 2:

Quantity:

Description

OEMs, Resellers and Contractors - Call 800-677-8876 for Pricing or email us at: sales@beccontrols.com

- Wet or Dry Media Compatible
- 0.10" WCD to 60 PSI (27.68 inches of water column = 1 psi)
- Wide range of signal outputs: 4-20 ma 2-wire and 4-wire outputs, nearly any voltage output
- NEMA 4 housing or panel mountable transmitter board
- AC, DC and loop powered
- Temp. Compensated Linear Analog Output
- Reverse Polarity Protected
- Zero and Span Adjustments
- Optional loop powered display

- P47 Series

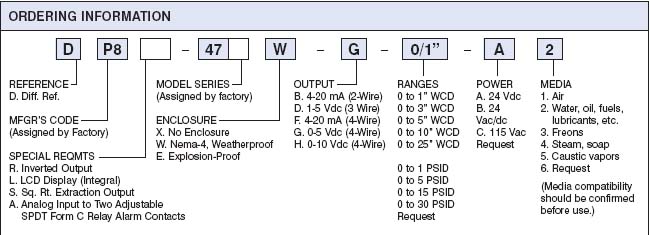

For selection help, view the catalog sheet below or to view it as a pdf, click the link below:

Open P47 catalog sheet in a new window
